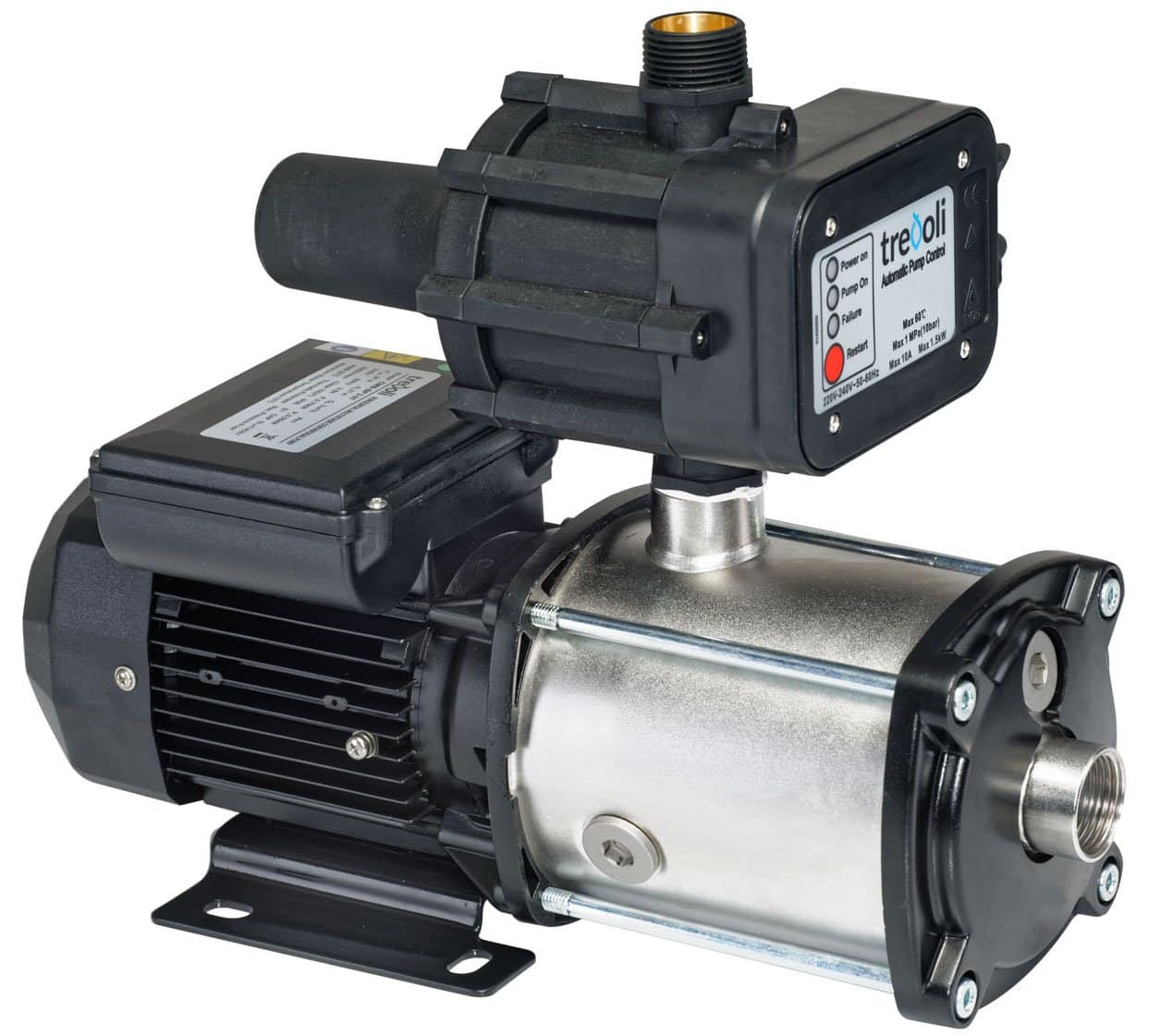

Trevoli CMB3-56E

Enquire about this product
Part No.HPKWInlet/OutletPhaseVoltageAmpsPump
CMB3-561.00.725/25mm1220-2404.5Bare Pump
CMB3-56E1.00.725/25mm1220-2404.5With DSK Controller
CMB3-56PCM1.00.725/25mm1220-2404.5With PCM Controller

Description

The Trevoli CMB 3-56 is a stainless steel multistage pump built to a proven design. They are ideal for domestic water supply, supplying above or below ground tanks. They are best suited to flooded suction installations. The CMB range come in 7 models and are designed to provide mains pressure for homes ranging from small single level to large multi-level homes and lifestyle blocks. They are very quiet in their operation and efficient.

FEATURES

  • Liquid temperature: 0-70°C
  • Maximum operating pressure: 10 bar
  • Enclosure class: IP55
  • Insulation class: F
  • Duty rating: Continuous
  • Built in thermal overload protection
  • 1.5 metre power cable with 3 pin plug

CONSTRUCTION MATERIALS

  • Mechanical seal: Machined carbon/Sic/EPDM
  • Stainless steel pump housing, impellers, stages and motor shaft
  • High quality low noise bearings
Part No. hp kW Inlet/Outlet Phase Voltage Amps
CMB 3-56 1.0 0.7 25/25mm 1 220-240 4.5
