Description

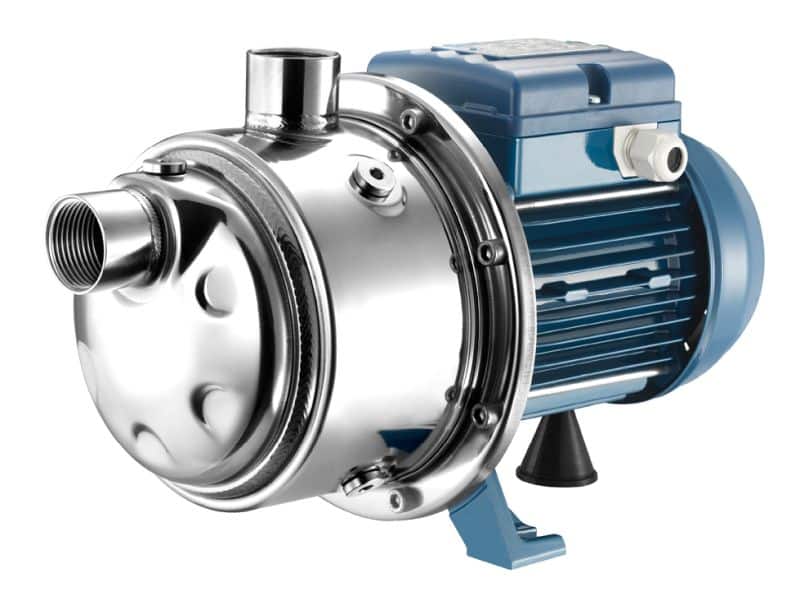

The Pentax Ultra 3S-90/4 are stainless steel multistage pumps well suited to house and farm water supply. They have a robust fully stainless steel wet end and are very quiet in operation. They can also cover a wide range of applications such as pumping of clean non-loaded fluids, irrigation, drinking and glycol water, water treatment, heating and air conditioning and washing systems.
FEATURES:
- Offset suction for improved suction ability
- Liquid temperature: -15 to +110 °C
- Maximum operating pressure: 8.5 bar (125 PSI)
- Enclosure class: IP44
- Insulation class: F
- Duty rating: Continuous
- Totally enclosed, fan cooled standard squirrel frame type motor
- Fitted with auto reset internal overload
CONSTRUCTION MATERIALS:
- 304 Stainless steel impellers, Diffusers, Seal plate & Pump casing
- 303 Stainless steel pump shaft
- Mechanical Seal: ceramic-graphite
- Aluminium motor bracket
