Description

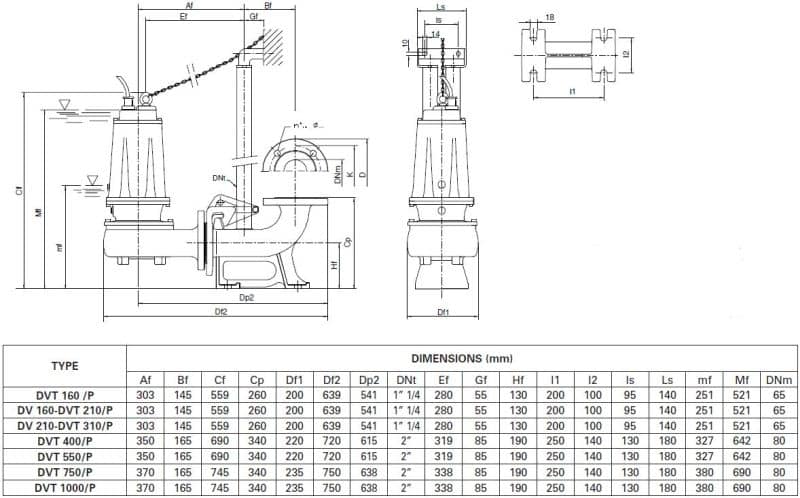

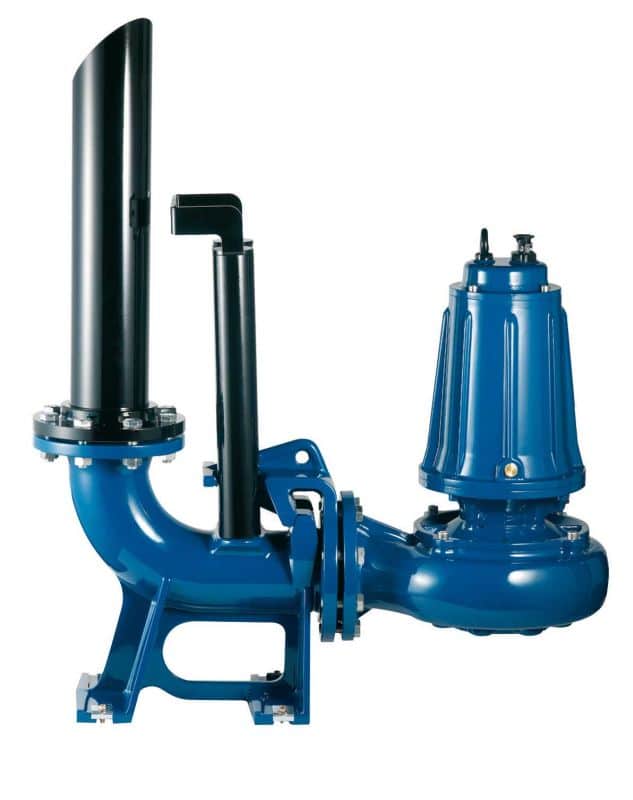

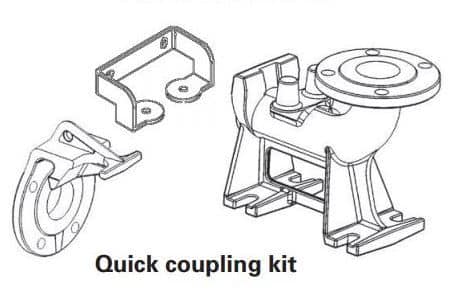

The Pentax DV210 submersible pumps are a “set-back” style vortex impeller pump ideal for heavy duty civil and industrial applications. They are designed for heavy duty use, either mobile or permanent installations. Available in the mobile or permanent versions with coupling feet.
Features
Cast Iron Pump Body
Cast Iron Impeller
Stainless steel AISI 304 Motor Shaft
A2 Stainless steel bolts
Galvanized iron foot support
NBR rubber gaskets
Can handle 50 mm Solids
Thermal Overload Protection
H07 RNF 10m Cable
Double mechanical seal with oil bath
Mechanical seal: silicon carbide on pump side, ceramic-graphite on motor side
Technical Features
Motor: 2 pole induction motor in oil bath
Temperature Range- 0 – 40 °C
Max immersion depth: 20 metres
IP68
Class F
Required starter capacitor: 50µF for 2HP model
