Description

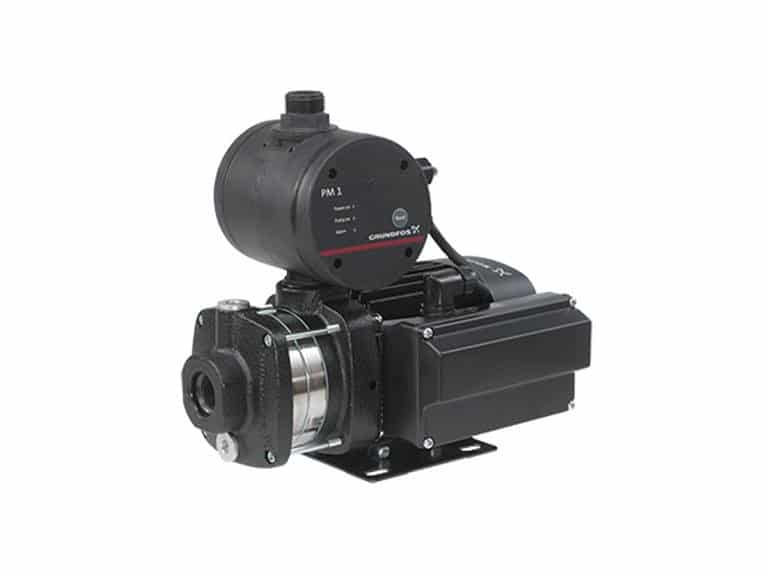

The CM Booster consists of a horizontal multistage centrifugal pump CM and a Grundfos Pressure Manager. The pump is suitable for above ground tanks (not for self priming). For self-priming options, see CM BOOSTER SELF-PRIMING
Components:Â Non self-priming stainless steel pump CM-A with PM1
Cable 1.2 m with plug
Liquid temperature: 0°C to +60°C
Ambient temperature: 0°C to +55°C
Supply voltage:Â 1 x 240 Volt 50 Hz
System pressure:Â Maximum 10 bar
Enclosure class:Â Suitable for covered installation (IP55)
| Model | P2 [kW] | I [A] | Outlet | Inlet | Rated Flow [m3/h] | Rated Head [m] | Start Type |
| CMB 1-36 | 0.50 | 3.30-3.15 | 1″ M | 1″ F | 1.7 | 23.7 | PM1 – 1.5 bar |
| CMB 3-37 | 0.50 | 3.30-3.15 | 1″ M | 1″ F | 3.1 | 27.7 | PM1 – 1.5 bar |
| CMB 3-46 | 0.50 | 3.30-3.15 | 1″ M | 1″ F | 3.1 | 30.5 | PM1 – 2.2 bar |
| CMB 5-46 | 0.90 | 5.4-5.0 | 1″ M | 1 1/4″ F | 4.7 | 38.6 | PM1 – 2. |
