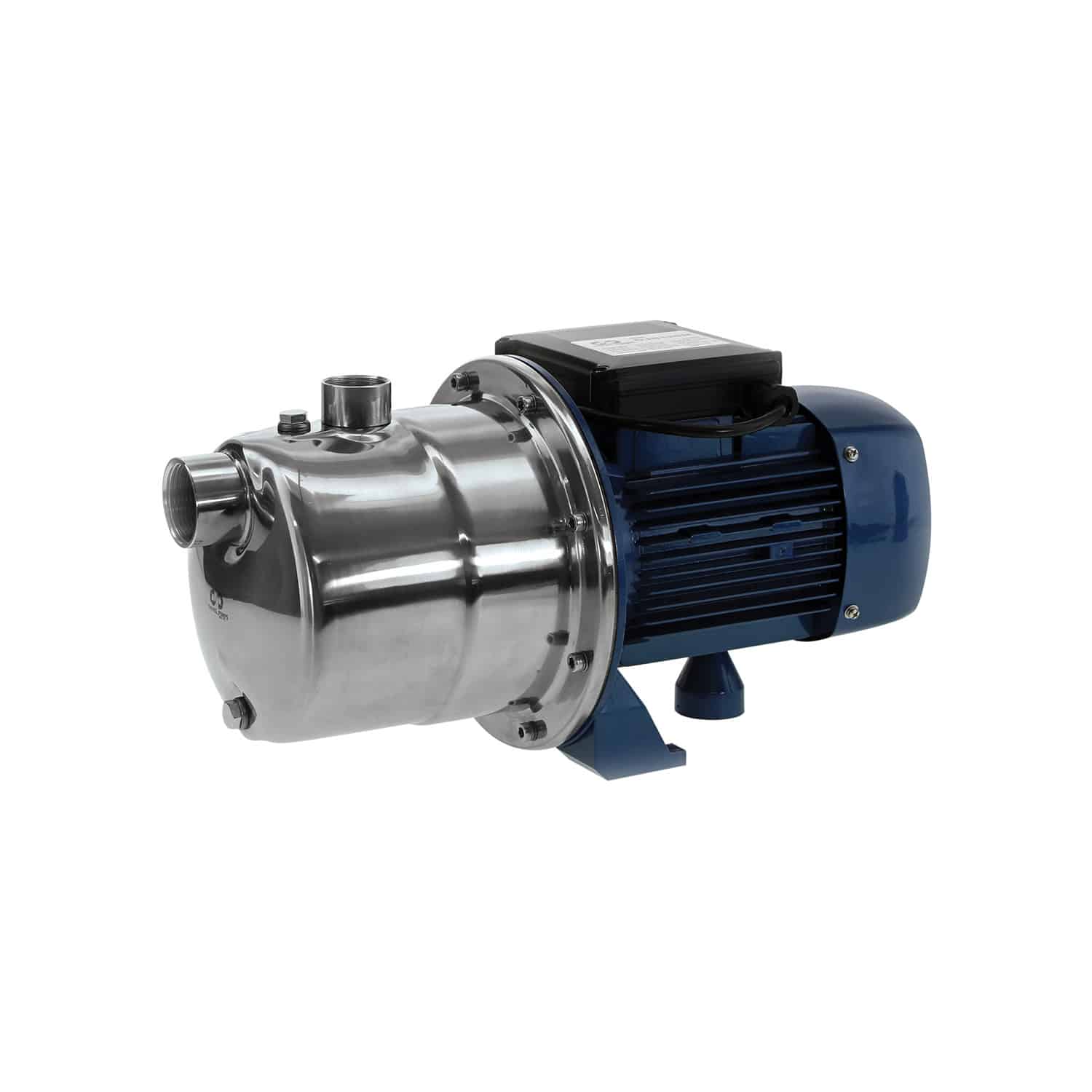

The DJS Jet assisted pumps are particularly suited to deep or long suction situations – below ground tanks, creeks, rivers and dams. Self-Priming and very tolerant to suction lines in poor condition or undersized.
Technical Features:
• Max working pressure: 6bar.
• Max liquid temperature: +45º C.
Motor Features:
• TEFC continuous duty motor.
• Class F Insulation.
• Ambient temperature range: -15 to +40º C
• Internal overload protector.
• IP55 protection.Construction Material
• Pump casing, Seal plate , pump shaft & Impeller: 304 Stainless steel.
• Mechanical seal: DJS80 – Carbon/Ceramic.
• DJS100&120 – Silicon/Carbon.
• Diffuser/Venturi: Glass reinforced Plastic.
• O Rings: EPDM.
• Motor mount and casing: Aluminium.
Technical Features:
• Max working pressure: 6bar.
• Max liquid temperature: +45º C.
Motor Features:
• TEFC continuous duty motor.
• Class F Insulation.
• Ambient temperature range: -15 to +40º C
• Internal overload protector.
• IP55 protection.Construction Material
• Pump casing, Seal plate , pump shaft & Impeller: 304 Stainless steel.
• Mechanical seal: DJS80 – Carbon/Ceramic.
• DJS100&120 – Silicon/Carbon.
• Diffuser/Venturi: Glass reinforced Plastic.
• O Rings: EPDM.
• Motor mount and casing: Aluminium.
2 Year Warranty
