Davies SPO80 Series

Enquire about this product
Part No.kWHzRPMVoltsPhase
220-SPO80
220-SPO80-1302.25029002301
220-SPO80-3302.25029004153

Description

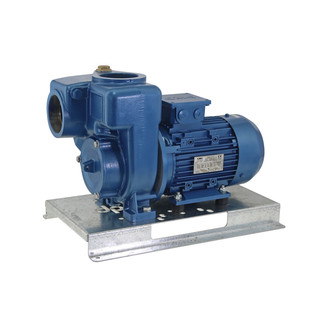

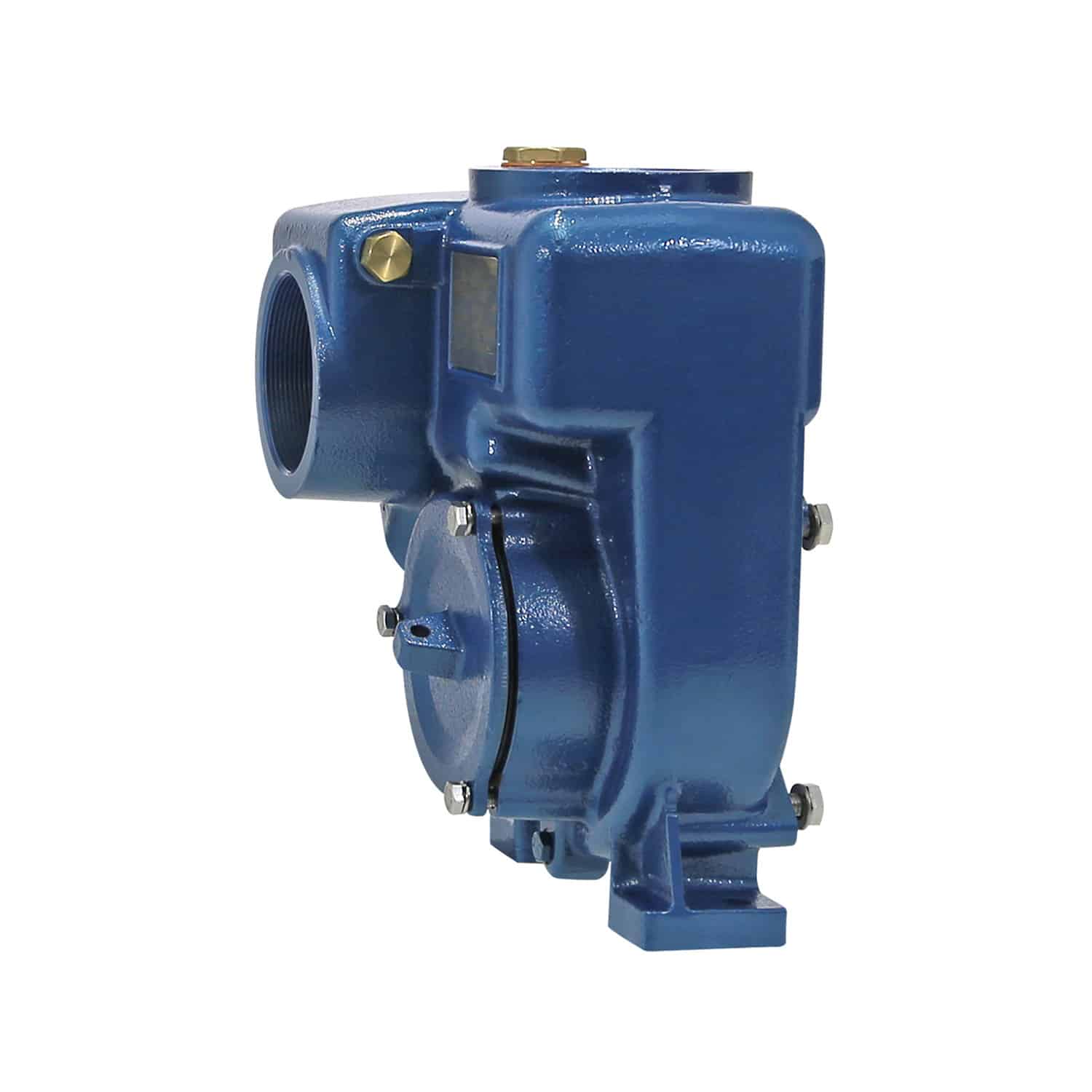

The Davies Pumps SPO80 is a rugged cast iron pump with self-priming ability and open impeller that can take up to 30mm solids. They are designed to couple directly to a standard metric single or three phase 2.2Kw 2pole electric motor with standard shaft for reliability and simple servicing. With self-priming ability up to 8m, max head of 16m and max flow of 900 Lpm, the SPO80 is a versatile pump for a wide range of dirty water applications such as underpass drainage, effluent transferring and tank filling from rivers or ponds.

Features:

  • Cast Iron Casing and Impeller
  • 316 Stainless wear plate
  • Non-return clacker valve
  • Large inspection hatch for servicing
  • B5 Flange motor mount
  • Max water temp 80ÂșC

Performance:

SPO80-performance-graph

SP080-Keyline
