Description

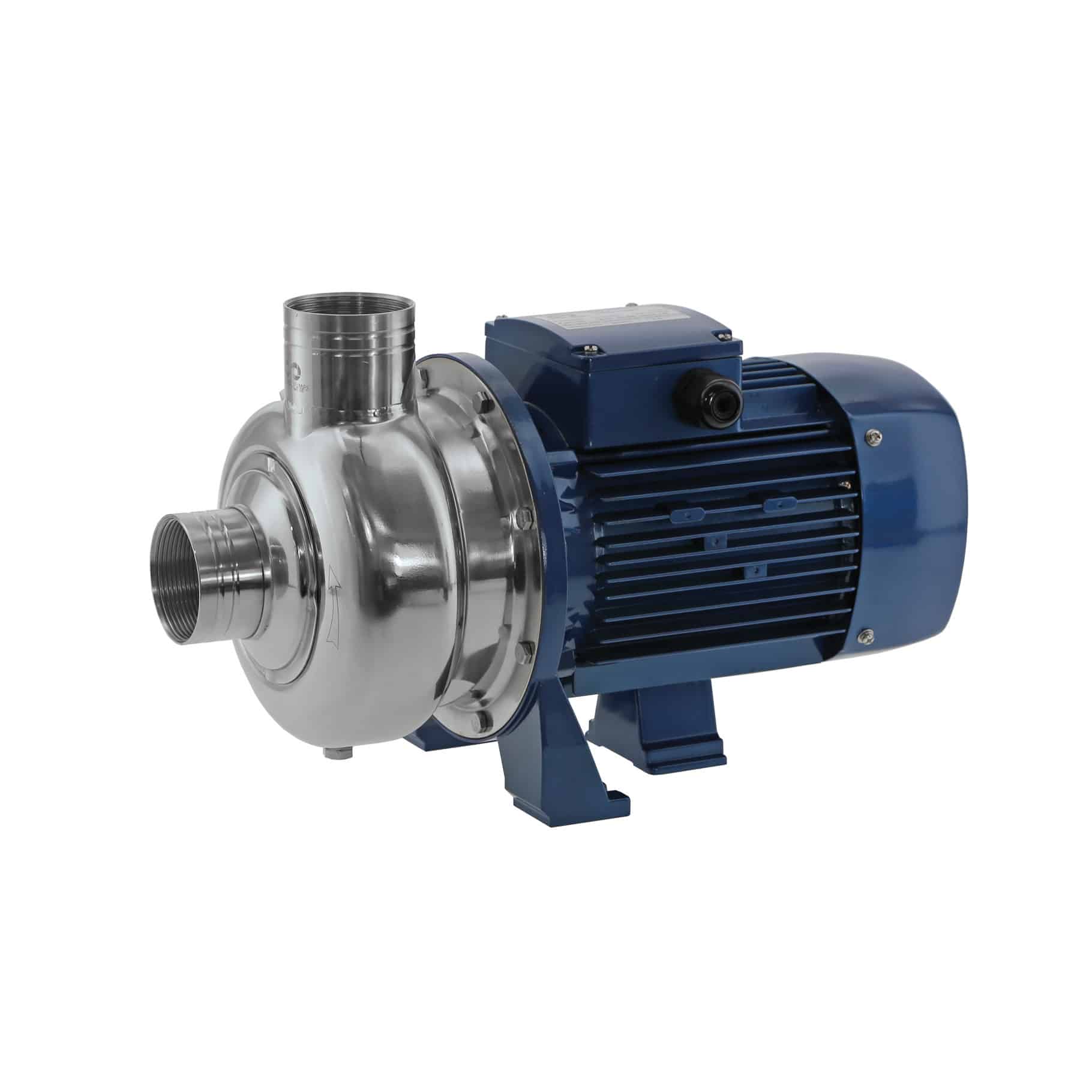

The Davies Pumps CKD series pump have a full stainless steel wet end with semi open impeller to move high volumes at low pressures without clogging. Large ports with internal threads for simple pipework installation or external ribs to fit flexible pipe.
Range of models available with single or three phase motors.
Typical Applications:
- Circulation
- Industrial washing and rinsing
- Transfer
Pump Type:
Non self-priming open impeller centrifugal pump for pumping clean or dirty, thin, non-explosive, non-flammable liquid.
Motor Features:
- Totally enclosed, fan cooled.
- Rated speed: 2850 RPM – 50Hz
- Single phase voltage range: 220-240V (PSC Type motor)
- Three phase voltage range: 220-240/380-415
- Insulation: Class F
- Protection: IP55
- Single phase versions fitted with internal auto reset overload
- Three phase version require user supplied overload to be fitted in installation
Operation limitations:
- Maximum ambient temperature: +40oc
- Liquid temperature range: -20oc to + 110oc
- Maximum operating pressure: 8.0bar/115PSI
