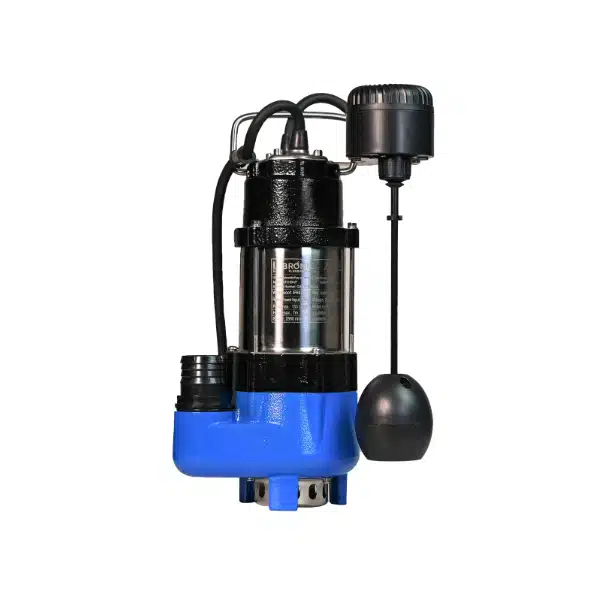

WATERBOY133L VORTEX SUBMERSIBLE PUMP WITH VERTICAL FLOAT SWITCH
WATERBOY133L VORTEX SUBMERSIBLE PUMP WITH VERTICAL FLOAT SWITCH - Image 2

WATERBOY133L VORTEX SUBMERSIBLE PUMP WITH VERTICAL FLOAT SWITCH

Enquire about this product

Description

This submersible vortex water pump is a compact portable pump for use with dirty water applications. This 133L Vortex pump handles soft solids up to 15mm in size. Fitted with a height adjustable vertical float switch, and an anti-clog semi-open impeller. With a 10m cable, designed to withstand weather, UV, and oil and a heavy duty cast iron body, the Waterboy vortex is ideal for use in the drainage of dirty water.

Features

Compact, for use in confined spaces

Height adjustable vertical float switch

Built-in thermal cutoff device with auto-reset function

Soft solids handling up to 15mm

Anti-clog semi-open impeller for easy maintenance and long service life

Harmonized H07RNF rubber flexible multicore cable, to withstand weather, UV, and oil

Stainless steel motor shaft and housing

Ideal for grey water pumping, sump emptying, septic effluent pumping, and water transfer

For use with dirty water

Warranty: 2 Years Replacement



Specifications
Product Number

7575150-VF
Barcode/GTIN

9320688424587
Application

Suitable for grey water pumping, simp emptying, septic effluent pumping, and water transfer.
Warranty (Years)

2 Years Replacement Warranty
Power

340W
Rated Voltage (V/50Hz)

220-240/50
Max. Flow Rate

133L/min
Max. Submersion or Immersion Depth

5m
Power Cable Length (m)

10
Max. Liquid Temperature (°C)

40
Water Type

Dirty
Weight (kg)

9.3
Width (mm)

215
Height (mm)

385
Depth (mm)

235
Brands

Waterboy
Fuel type

Water
Pumping Capacity

133L
Outlet Connection ( Thread Size )

1″, 1 1/4″, 1 1/2″
Outlet Connection ( Thread Type )

G
