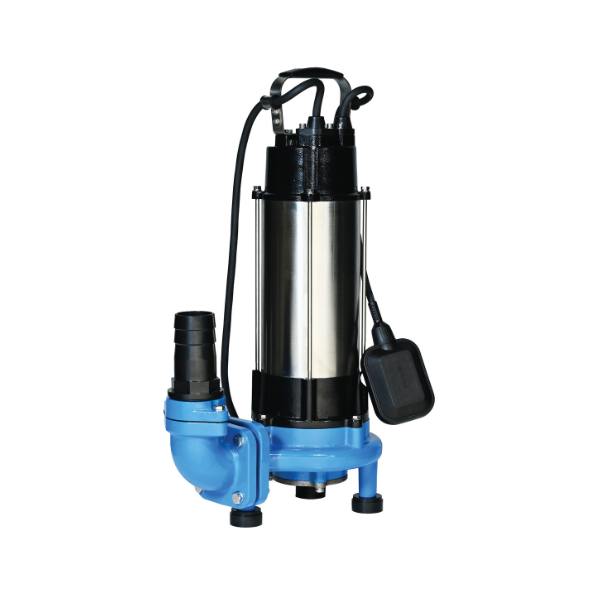

Waterboy 250L Grinder Submersible Pump

Enquire about this product

Description

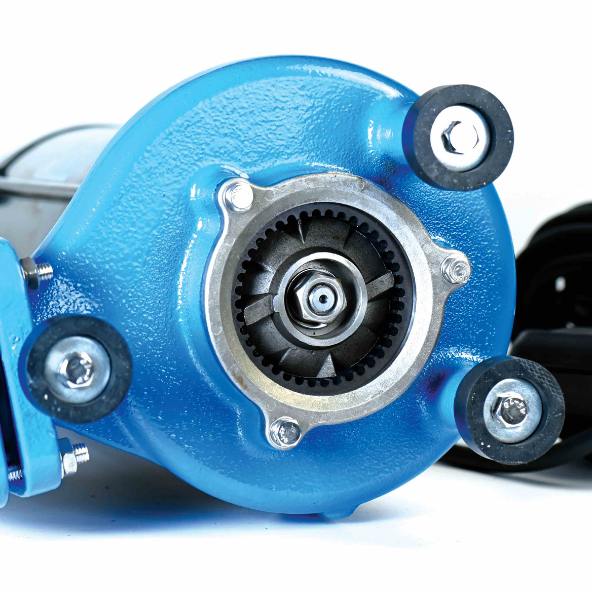

The Waterboy Grinder pump is designed for shredding of various materials in wastewater applications with its 9Cr18 high carbon high chromium martensitic stainless steel cutting mechanism. Great for handling soft solids and built with an anti-clog semi-open impeller for easy maintenance. Featuring a built-in overcurrent and thermos cutoff device, the 250L grinder pump is protected by a heavy duty cast iron body with stainless steel motor shaft and housing.

Features

Heavy duty cast iron body
Durable 9Cr18 cutting mechanism easily shreds various materials
Anti-clog semi-open impeller for easy maintenance and long service life
Harmonized H07RNF rubber flexible multicore cable, designed to withstand weather, UV, and oil
Built-in overcurrent & thermal cutoff device with auto-reset function to ensure the long service life
Dual Ceramic/Graphite mechanical seal
Stainless steel motor shaft and housing
Suitable for drainage of wastewater
1650W rated power
For use with dirty water
Warranty: 2 Years Replacement

Specifications
Product Number

7575180
Barcode/GTIN

9320688421500
Application

Drainage of wastewater
Warranty (Years)

2 Years Replacement Warranty
IP Rating

IP68
Rated Voltage (V/50Hz)

220-240
Power

1650W
Max. Submersion or Immersion Depth

5
Max. Liquid Temperature (°C)

40
Max. Flow Rate

250
Max. Head (m)

19.5
Power Cable Length (m)

10
Water Type

Dirty
Discharge (mm)

50
Weight (kg)

25.5
Depth (mm)

242
Width (mm)

292
Height (mm)

550
Brands

Waterboy
Fuel type

Water
Pumping Capacity

250L
Outlet Connection ( Thread Size )

2″
Outlet Connection ( Thread Type )

G
