Trevoli UV Systems

Enquire about this product
ModelWattageNominal Recommended Flow (30mJ/cm2)Max Recommended Flow (16mJ/cm2)Temperature RangeInlet/Outlet SizeLamps
UV110110W90LPM168LPM2-40°C25mm2
UV5555W45LPM84LPM2-40°C20mm1
UV66W5LPM9LPM2-40°C6mm1
UV1616W13LPM24LPM2-40°C15mm1
UV3030W24LPM45LPM2-40°C20mm1
UV165165W135LPM252LPM2-40°C40mm3
UV220220180LPM336LPM2-40°C40mm4
UV330330W270LPM504LPM2-40°C50mm6

Description

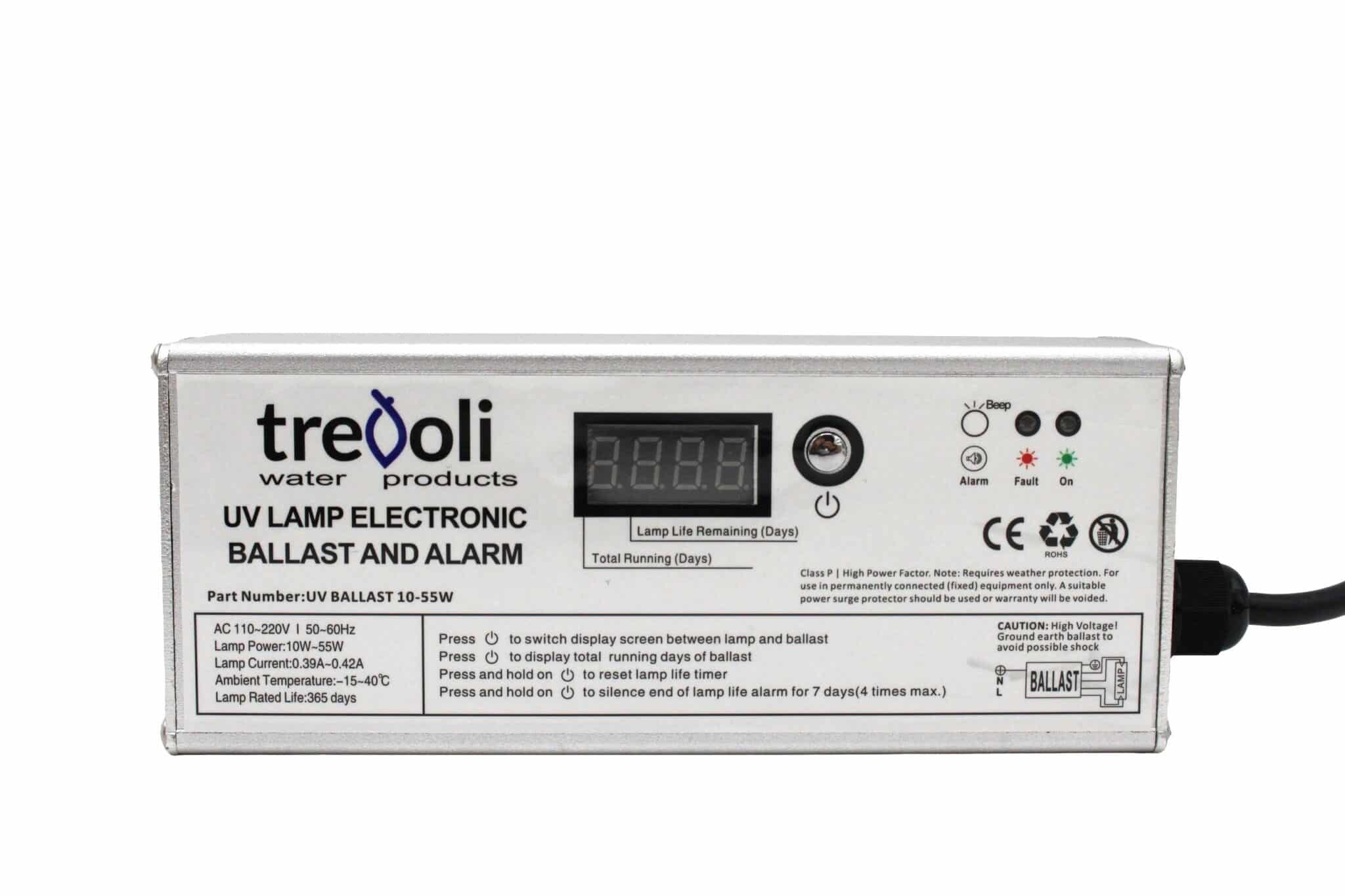

The Trevoli UV range is designed for low maintenance and ease of use, featuring double-ended UV chambers crafted from high-grade stainless steel for durability and efficient UV lamps that provide a full year of protection and thorough disinfection. The electronic controller (ballast) powers the UV lamp and effectively controls the system diagnostics.

Trevoli UV systems effectively inactivate bacteria and viruses such as E. coli and Salmonella. These systems are versatile, making them ideal for small to large homes, and our larger units are well-equipped for commercial applications.

Each unit comes complete with the required number of ballasts, quartz sleeves, UV lamps, and seals.

All units aside from the UV6 come with a countdown timer ballast, to view the total running days and lamp life remaining.

UV6, UV16, UV30 & UV55 come with plastic mounting clamps. Aluminum clamps are available as an additional extra.

Features:

  • 99.9% inactivation of bacteria (such as e-coli, salmonella)
  • Lamp power failure visible and audible alarm
  • Hard Glass UV lamp
  • Environmentally Friendly-no chemicals added to water and no water chemical change
  • Range of sizes to meet flow rate requirements
