Description

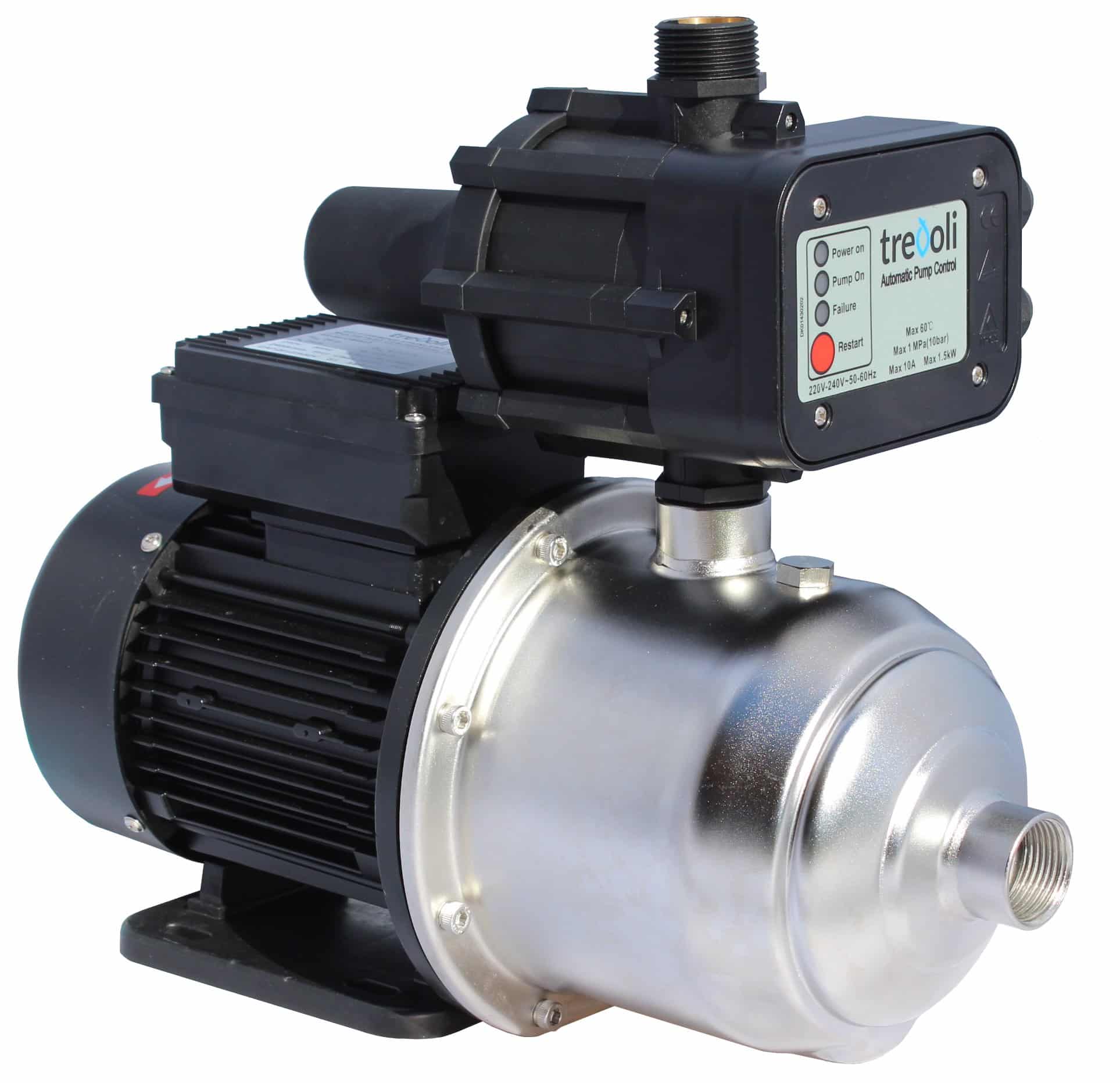

The Trevoli CMS series are a range of selfpriming stainless-steel multistage pumps. They are ideal for domestic water supply where suction (up to 4 metres) is required. The CMS range come in 4 models and are designed to provide mains pressure for homes ranging from small single level to large multi-level homes and lifestyle blocks. They are very quiet in their operation.
FEATURES
- Liquid temperature: 0-50°C
- Maximum operating pressure: 10 bar
- Enclosure class: IP55
- Insulation class: F
- Duty rating: Continuous
- Run dry protection
- Thermal Protection Overload
CONSTRUCTION MATERIALS
- Corrosion resistant stainless-steel housing and shaft.
- Engineering grade PPO Stages and stainless-steel Impellers
- 1.5- metre power cable with a 3-pin plug
| Part No. | hp | kW | Inlet/Outlet | Phase | Amps | Voltage |
| CMS23 | 0.7 | 0.5 | 25mm | 1 | 3.8 | 220-240 |
