Description

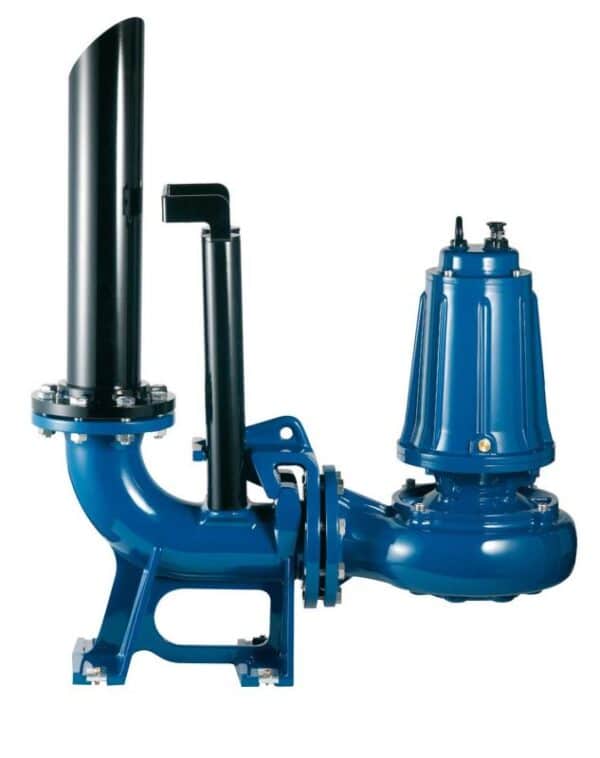

The Pentax DVT310 submersible pumps are a “set-back” style vortex impeller pump ideal for heavy duty civil and industrial applications. They are designed for heavy duty use, either mobile or permanent installations. Available in the mobile or permanent versions with coupling feet.
Features
- Cast Iron Pump Body
- Cast Iron Impeller
- Stainless steel AISI 304 Motor Shaft
- A2 Stainless steel bolts
- Galvanized iron foot support
- NBR rubber gaskets
- Can handle 50 mm Solids
- Thermal Overload Protection
- H07 RNF 10m Cable
- Double mechanical seal with oil bath
- Mechanical seal: silicon carbide on pump side, ceramic-graphite on motor side
Technical Features
- Motor: 2 pole induction motor in oil bath
- Temperature Range- 0 – 40 °C
- Max immersion depth: 20 metres
- IP68
- Class F
- Required starter capacitor: 50µF for 2HP model
