Description

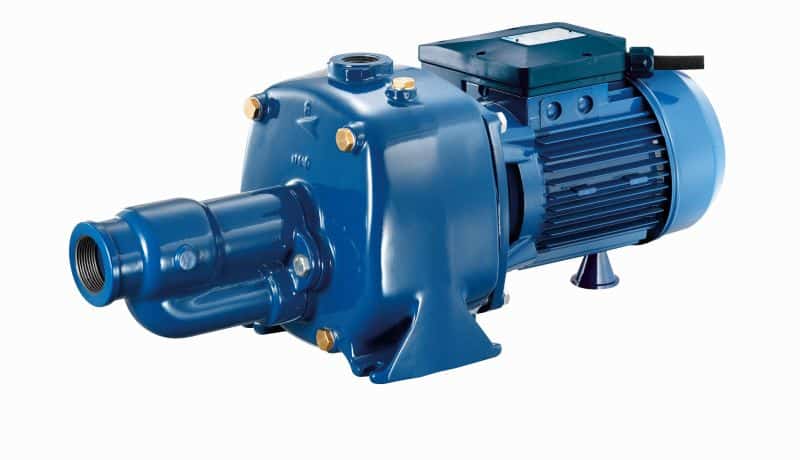

The Pentax CAB 200 are self-priming centrifugal pumps designed for water transfer and supply (even if mixed with gas). They are ideal for large household, civil and farm systems. The CAB 200 is a twin impeller design, a very quiet and efficient pump capable of lifting water 8-9 metres from below.
FEATURES:
- 8m Suction Lift
- Heavy Duty Build
- Liquid temperature: 0 – 50 °C
- Maximum operating pressure: 8 bar
- Enclosure class: IP44
- Insulation class: F
- Duty rating: Continuous
- Built in thermal overload protection
CONSTRUCTION MATERIALS:
- Cast Iron Body & Motor Bracket
- Brass Impeller
- Graphite / Ceramic Mechanical Seal
- AISI 303 Stainless Steel Shaft
| Part No. | hp | kW | Inlet/Outlet | Phase | Voltage | Amps |
| CAB 200 | 2.0 | 1.5 | 40/25mm | 1 | 220-240 | 10.3 |
