Majesto Series Vortex

Enquire about this product
Part No.HPkWPhaseVoltsFloat SwitchAmpsOutlet
240-MV1500A21.53400No3.350mm
240-MV1500T1.51.13400No2.550mm
240-MV1500A1.11.11230Yes7.250mm
240-MV1000T10.753400No2.150mm
240-MV1000A10.751230Yes4.850mm
240-MV750A0.750.551230Yes3.640mm

Description

Davies Majesto Series Vortex

The Davies Pumps MV series vortex submersible pumps can handle up to 50mm solids and deliver flows up to 550lpm and 11 meter head.

For emptying sumps, sewerage and effluent transfer and many other grey and black water pumping applications particularly with high solids content.

Features

  • Double mechanical seals
  • 304 Stainless steel construction
  • Non clogging Vortex design
  • Side Discharge
  • Float switch or manual operation
  • Maximum liquid temperature: +35°C
  • Available in Single or Three phase
  • 50mm solid passage clearance (MV750A has 35mm)
  • MV750 – 5m lead.
    MV1000 – MV2000 – 10m lead.

All Stainless Steel Construction

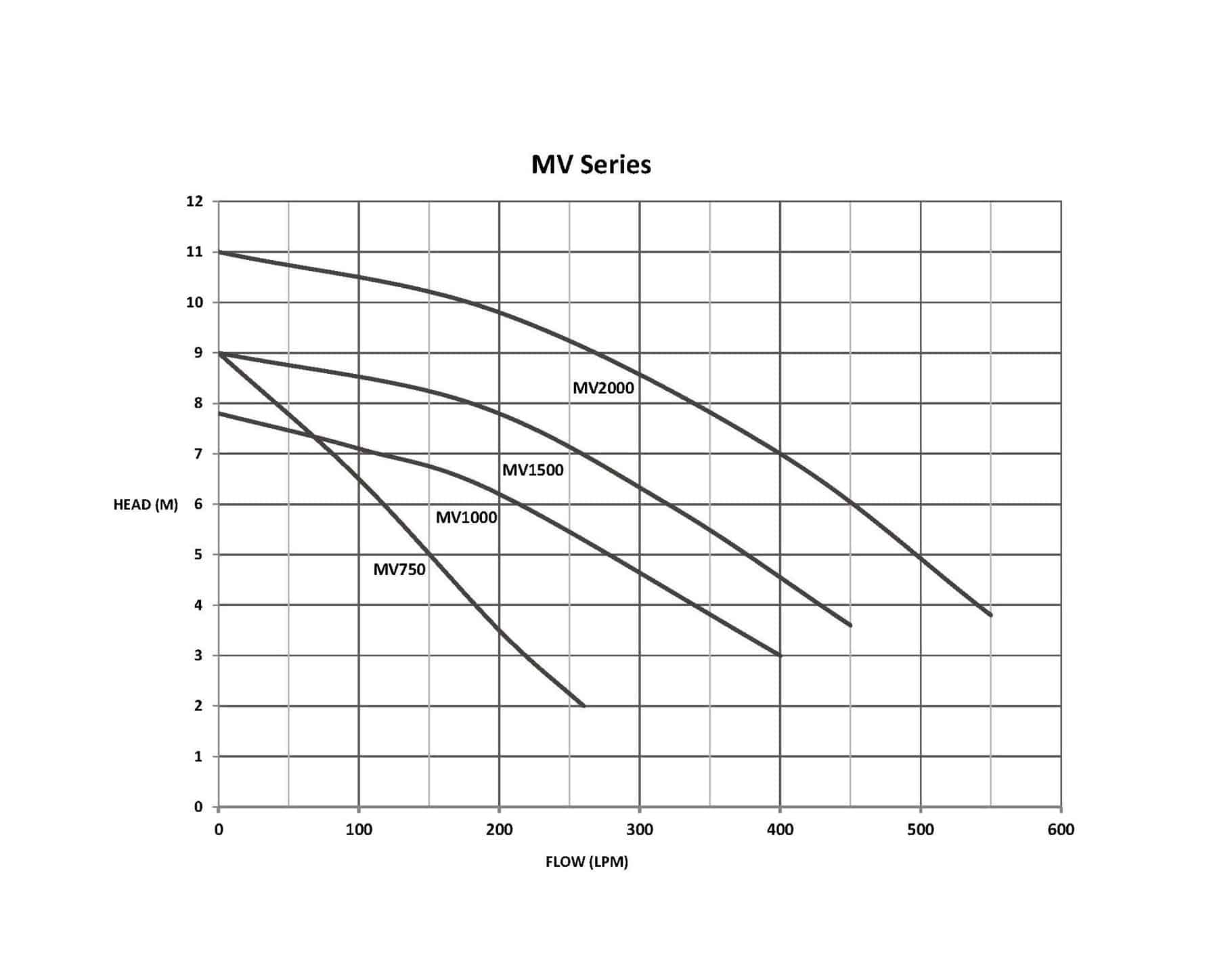

Performance:

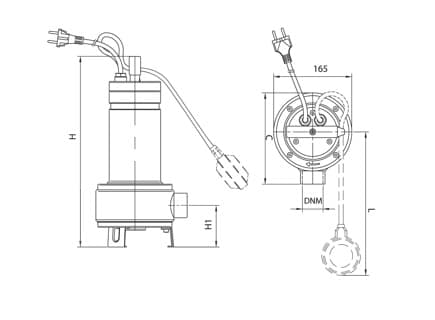

Dimensions & Specifications
Part No. H H1 L C DNM KG
MV750 403 88 350 193 40 11
MV1000 486 112 350 198 50 14
MV1500 486 112 350 198 50 15
MV2000 486 112 198 50 15
