Description
Stainless Steel Vertical Multi-stage Pumps
The e-SV™ pumps are tough, efficient and built to last. Thanks to a unique combination of new hydraulic design and higher efficiency motor, the e-SV™ delivers lower overall life-cycle costs and superior efficiency compared to most pumps available today.

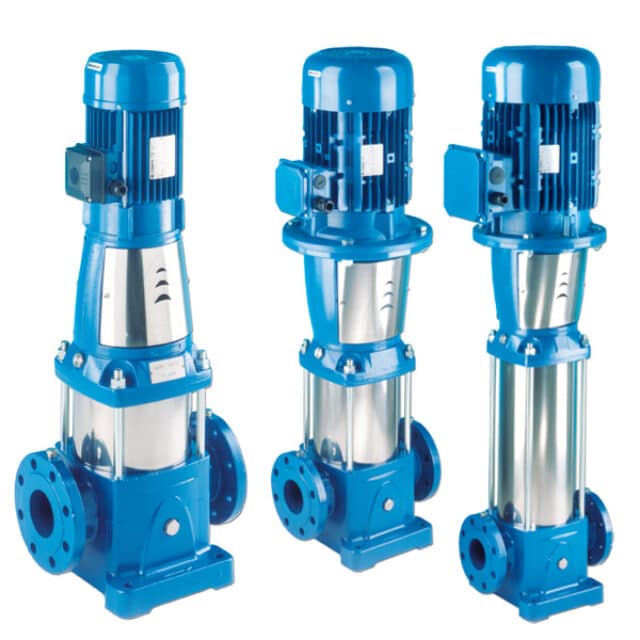

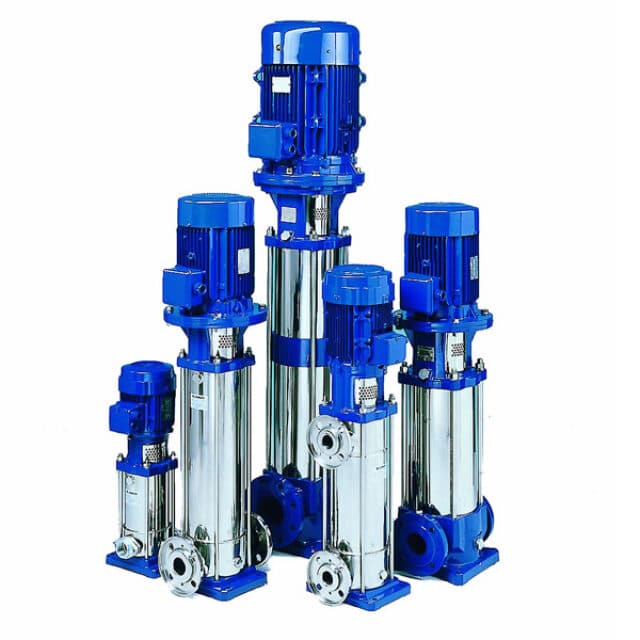

Multi-stage vertical pumps with impellers, diffusers and outer sleeve entirely made of 304 stainless steel, with pump body and upper head in cast iron in the standard versions (33SV-125SV) and 304 stainless steel (1SV-22SV). The N versions are entirely made of 316 stainless steel. The S version in 33SV-125SV is made entirely of 304 stainless steel. This reliable and technologically advanced series owes its success to its flexibility of application, ease of maintenance (the mechanical seal can be replaced without removing the motor), high performance and silent running.
AS/NZS 4020:2018 Compliant – Suitable for use in contact
More and more customers require specific solutions for satisfying particular application requirements. To meet their needs, Lowara offers a series of variants for personalising the e-SV™ pumps.
- High pressure pump: the e-SV™ pump was especially designed to withstand maximum operating pressures of 40 bar. In case of elevated input pressures, it can be used as a single pump or in a system with 2 pumps connected in series and reach heads of over 400 metres.
- Horizontal version: the e-SV™ pump is supplied with motor and pump support brackets for specific applications requiring horizontal assembly.
- Version with low NPSH: the e-SV™ pump was especially designed for boiler charging applications with an elevated risk of cavitation.
- High temperature version: the e-SV™ pump was especially developed to operate with water at high temperatures (up to 180°C).
- Passivated and electro-polished version: all e-SV™ pump components are passivated and electro-polished in order to reduce the risk of corrosion and to comply with specific hygiene requirements.
- Version with stainless steel base: the e-SV™ pump can be supplied with a stainless steel base for applications in aggressive conditions.
- Motors:
