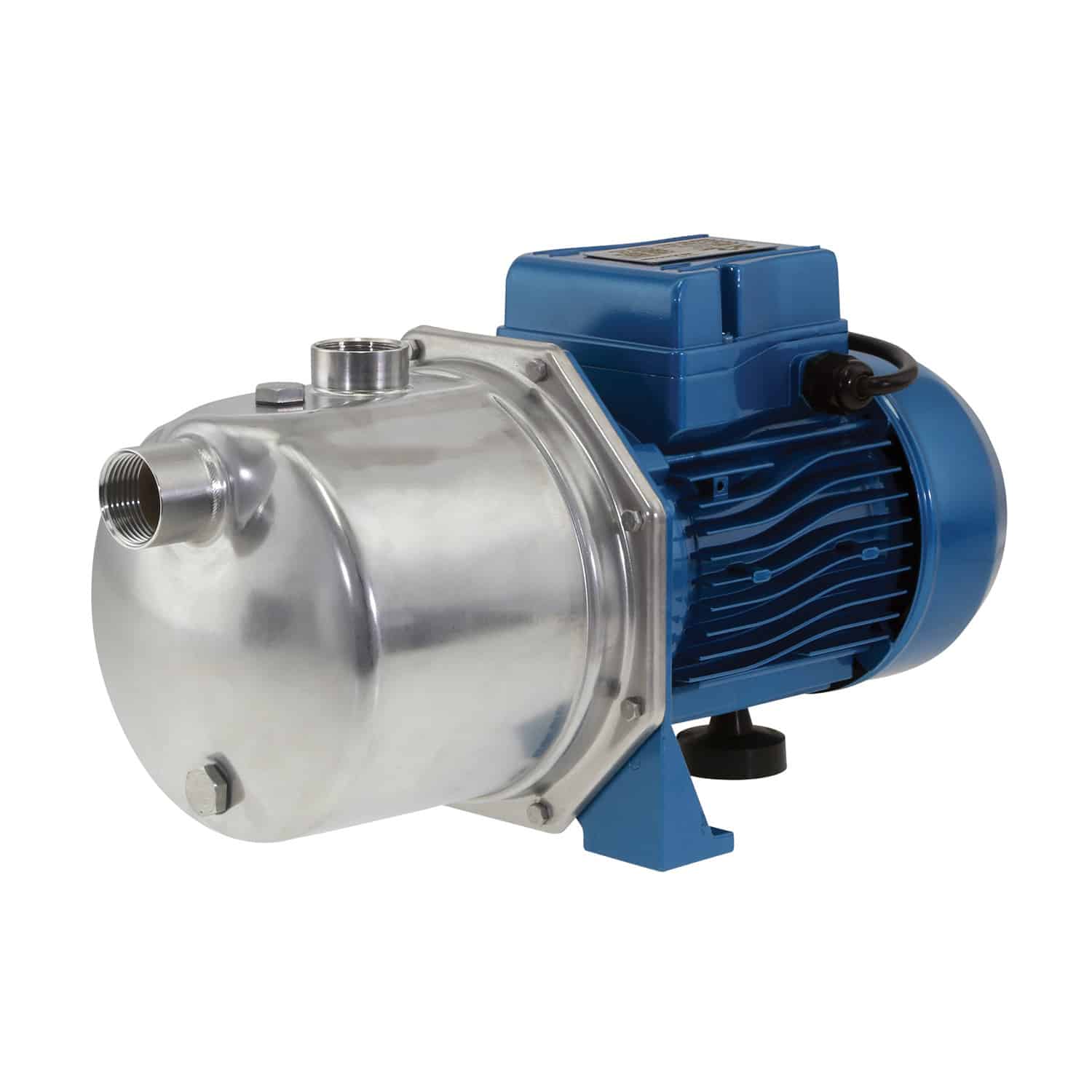

Davies JEXI Series

Davies JEXI Series

Enquire about this product

Description

The JEXI Series assisted pumps are particularly suited to deep or long suction situations – below ground tanks, creeks, rivers and dams. Self-Priming and very tolerant to suction lines in poor condition or undersized.

Technical Data:

  • Max working pressure: 6bar
  • Max liquid temperature: +60ºC

Motor Features:

  • TEFC continuous duty motor
  • Class F Insulation
  • Ambient temperature range: 15 to +40ºC
  • Internal overload protector
  • IP44 protection

Construction Material:

  • Pump body: AISI 304 stainless steel
  • Impeller: Jexi-082 techno polymer, Jexi-102/122 AISI 304 S/S
  • Pump Shaft: Jexi-082 420F AISI 304 S/S, Jexi-102/122 AISI 304 S/S
  • Mechanical seal Carbon/Ceramic
  • Diffuser/Venturi: Techno Polymer
  • O Rings: NBR
  • Motor mount and casing: Aluminum

Variants

Item no. Voltage Phase Brand Description

220-JEXI-082M 230 1Ph DAVIES DAVIES JEXI 0.8Hp S/S JET Pump 230V 50HZ 1Ph – Techno Imp.
220-JEXI-102M 230 1Ph DAVIES DAVIES JEXI 1.0Hp S/S JET Pump 230V 50HZ 1Ph – S/S Imp.
220-JEXI-122M 230 1Ph DAVIES DAVIES JEXI 1.2Hp S/S JET Pump 230V 50HZ 1Ph – S/S Imp.
