The Davies Pumps Classic M series are the original rugged and efficient design that has been manufactured to the highest standards of quality and proven in NZ for over 50 years.

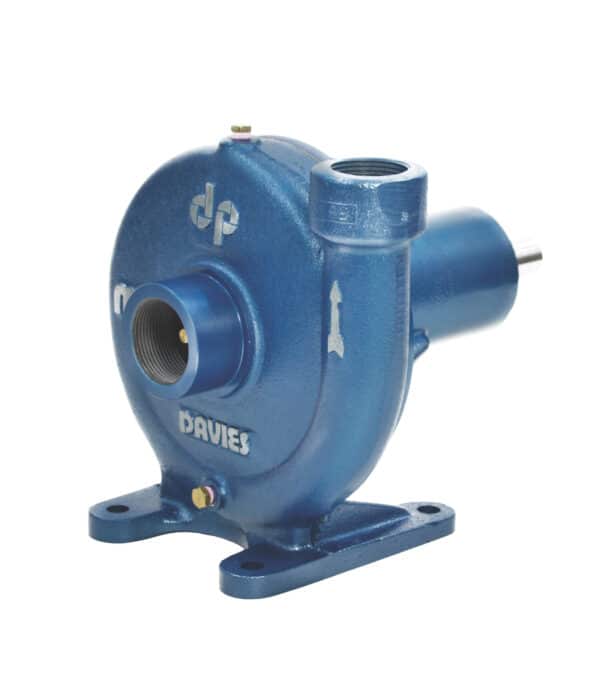

The Davies Pumps M series classic pumps are a bare shaft, pedestal mount centrifugal pump for belt drive from separate power source. M series pumps are suitable for agricultural, marine, commercial or industrial use. Ideal for water transfer, wash down and many other applications. Featuring heavy duty cast iron construction with sealed ball bearings and mechanical seals and the option of gunmetal impeller for long term durability in harsh, aggressive applications.
These pumps can be used in many applications, including pumping flammable liquids. Viton Seal Standard.
GUNMETAL SUITABLE FOR PUMPING SALTWATER
M3/4
M1 1/42 Year Warranty
The Davies Pumps M series classic pumps are a bare shaft, pedestal mount centrifugal pump for belt drive from separate power source. M series pumps are suitable for agricultural, marine, commercial or industrial use. Ideal for water transfer, wash down and many other applications. Featuring heavy duty cast iron construction with sealed ball bearings and mechanical seals and the option of gunmetal impeller for long term durability in harsh, aggressive applications.
These pumps can be used in many applications, including pumping flammable liquids. Viton Seal Standard.
GUNMETAL SUITABLE FOR PUMPING SALTWATER
M3/4
M1 1/42 Year Warranty
| Dimensions And Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Model No. | Height To Discharge | Height To Centre Of Inlet | Overall Length | Width | Shaft | Discharge | Inlet |
| M ¾ | 200 | 105 | 240 | 175 | 5/8” | ¾” | 1” |
| M 1 ¼ | 230 | 130 | 295 | 230 | 1” | 1 ¼” | 1½ |
