Davies Classis K Series

Enquire about this product
Part No.DescriptionPhaseBrandKwVoltage

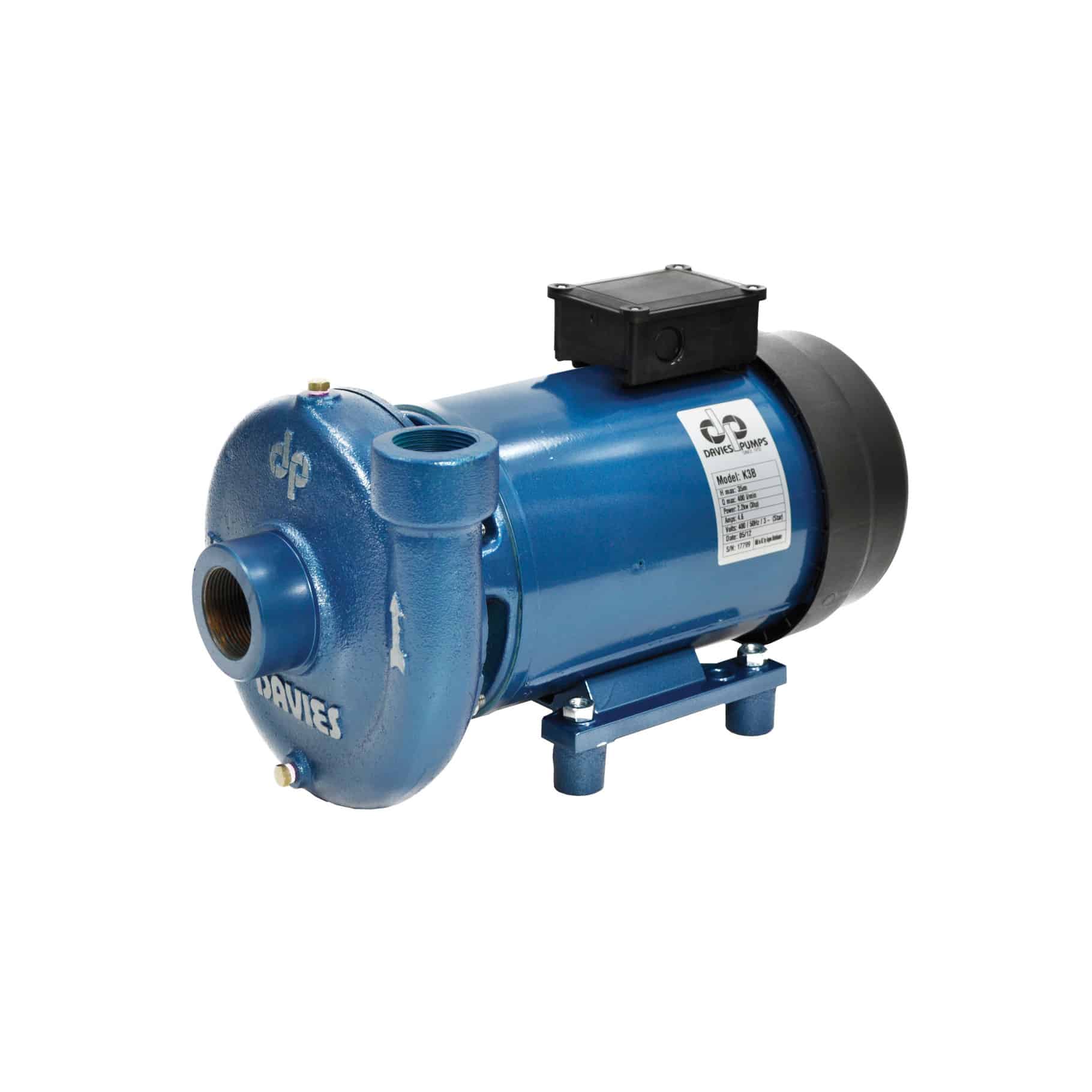

225-D-137766DAVIES K3B Pump 3.0HP 2.2Kw 3 Ph3PhDavies400

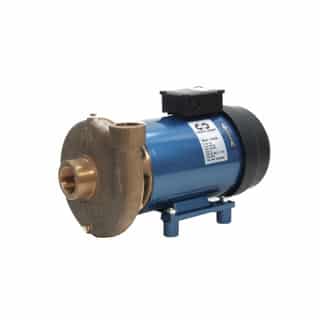

225-D-137200GDAVIES K3/4B Pump 3/4HP 1 Ph with Gunmetal Impeller1PhDavies0.55
225-D-137391GDAVIES K3/4B Pump 3/4HP 3 Ph - Gunmetal Impeller3Ph0.55
225-D-137529GDAVIES K1 1/4BSP Pump 1.25HP 0.93Kw 1 Ph Gunmetal Impeller1PhDavies0.93230
225-D-137596GDAVIES K1 1/4B Pump 1.25HP 0.93Kw 3 Ph Gunmetal Impeller3PhDavies2.2
225-D-137766GDAVIES K1 1/4BSP Pump 1.25HP 0.93Kw 1 Ph Gunmetal Impeller3PhDavies0.93230
225-D-137264DAVIES K3/4B Gunmetal Pump 3/4HP 1 Ph1PhDavies0.55
225-D-137464DAVIES K3/4B Gunmetal Pump 3/4HP 3 Ph3PhDavies0.93230
225-D-137535DAVIES K1 1/4BSP Pump 1.25HP 0.93Kw 1 Ph GUNMETAL1PhDavies0.93230
225-D-137564DAVIES K1 1/4B Pump 1.25HP 0.93Kw 3 Ph GUNMETAL3PhDavies0.93
225-D-137790DAVIES K3B Gunmetal Pump 3HP 2.2Kw 3 Ph3PhDavies2.2

Description

The Davies Classic K series are the original rugged and efficient design that has been manufactured to the highest standards of quality and proven in NZ for over 50 years.

The Davies K Series Classic pumps are a close coupled compact electric centrifugal pump suitable for agricultural, marine, commercial or industrial use. Ideal for water transfer, wash down, domestic water supply and many other applications. Gun metal versions are suitable for corrosive applications such as marine sea water wash down.

There is currently 3 common pump models available, K3/4 and K1 1/4 with either single or three phase motors and the popular three phase K3B. All models available in Cast Iron or Gun Metal construction.

GUNMETAL SUITABLE FOR PUMPING SALTWATER

K3/4 BSP Single Phase

K3/4 B Three Phase

K1 1/4 BSP Single Phase

K1  1/4 B Three Phase

K3 B Three Phase



Performance:

Specifications
Model No. Height To Discharge Height to Inlet Overall Length Overall Height Overall Width Inlet Outlet Kg
K ¾ 182 90 365 220 185 1” ¾” 18
K 1 ¼ 195 95 380 220 195 1 ¼” 1” 19
K3B 220 115 420 245 235 1 ½” 1 ¼” 33
