Description

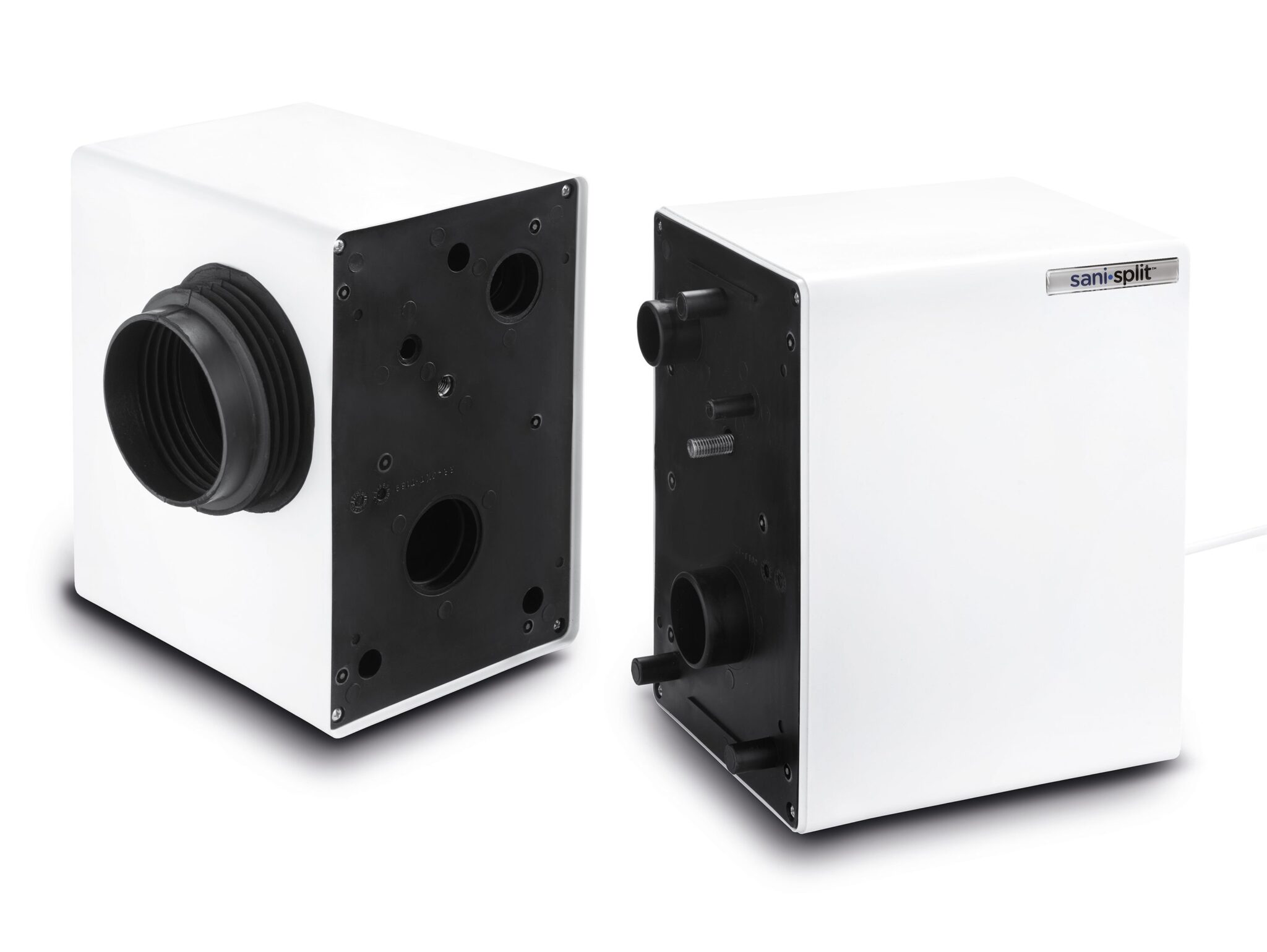

BS3 Sanisplit Pump Station
A neat, effective and practical solution for pumping away sewage effluent and waste water where gravity fall is not available.

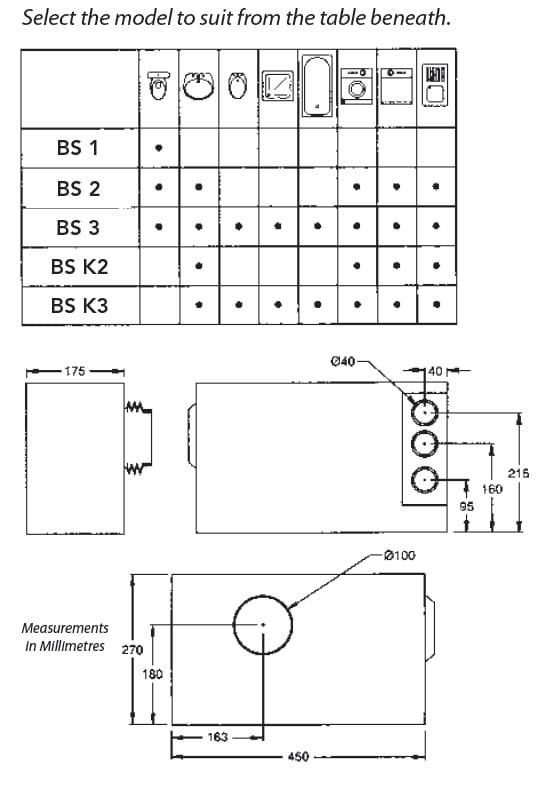

Model & Application
| Model | Toilet | Vanity | Bidet | Shower | Bath | Washing Machine | Dishwasher | Kitchen |
| BS3 | Y | Y | Y | Y | Y | Y | Y | Y |
(Y=Application)
(X=Not suitable)
Features:
- Grinds & discharges toilet, bathroom, laundry and kitchen waste water.
- Fits directly to any standard 100mm P pan or remotely to a maximum of 150mm from the pan.
- All connecting pipework is concealed, 40mm waste pipe in, 32mm or 40mm out.
- The collection unit can be separated from the motor unit for servicing without having to disconnect the pan or pipework.
- Choice of venting options, internal (standard), or external to atmosphere
- Internal non return valve on the discharge line.
- Not suitable for receiving and pumping coffee grinds, women’s sanitary products and bathroom wipes.
(High level alarms available on request)
Applications:
- Suitable for domestic and some light commercial applications
3 Year Warranty
