Big Blue Filter Housing 10”

Enquire about this product
Part No.Inlet/OutletSuits
715-BB10HT50110" Big Cartridge
715-BB10HS50110" Big Cartridge

Description

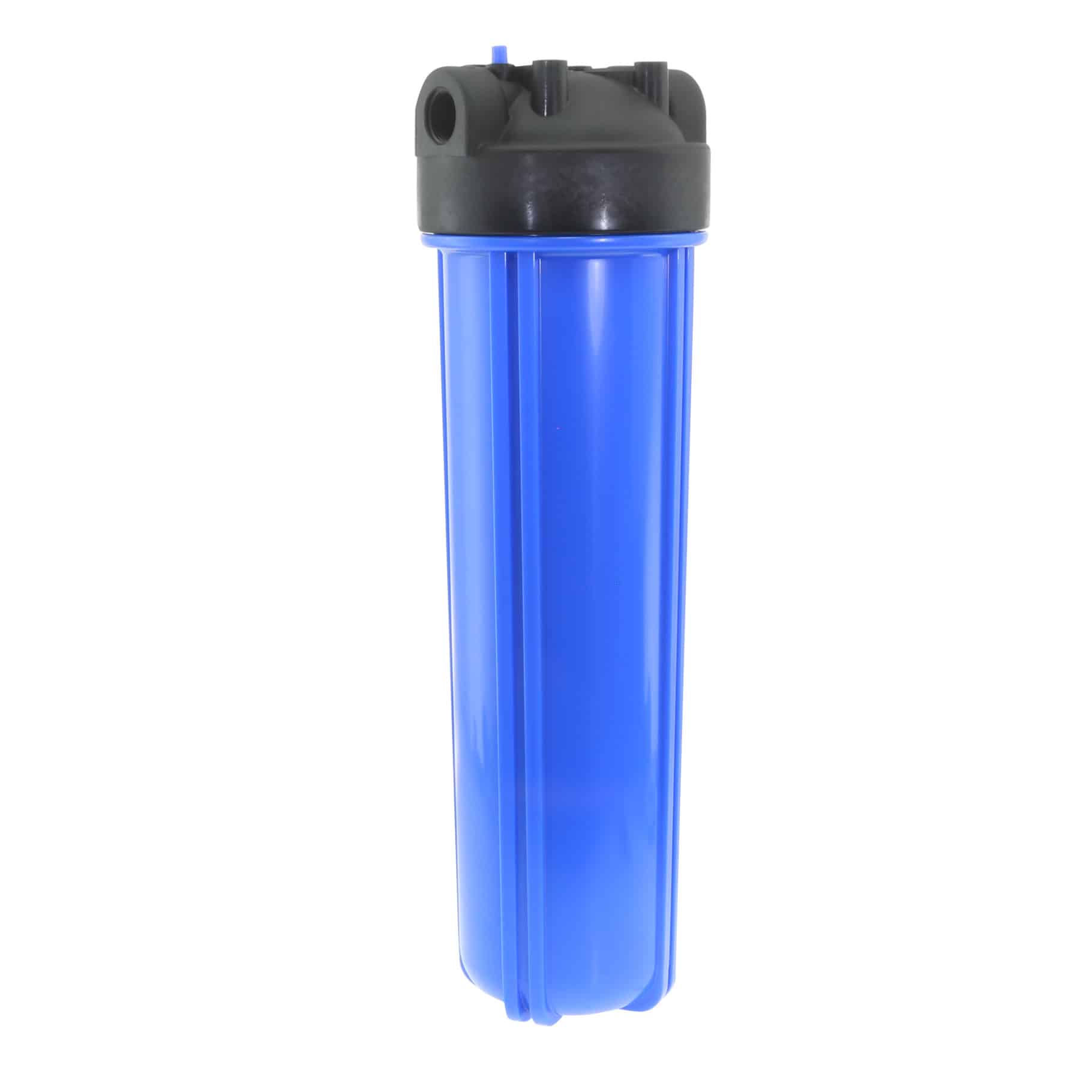

Pentek Big Blue Filter Housing 10”

Pentair® Pentek Big White® Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications.
The cap has 1″ NPT inlet and outlet ports. The 1-1/2″ internal port allows a greater volume of liquid to pass through the cap. Big White Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button.

They accept a wide variety of 4-1/2″ diameter x 10″ long cartridges for different applications.

Includes wall mount bracket and spanner.

Specifications:

  • Housing – Polypropylene (opaque)
  • Cap – Reinforced polypropylene
  • O-Ring – Buna-N
  • Temperature Rating– +4.0 to +52°C)
  • Maximum Pressure: 8.6Bar (125PSI)
