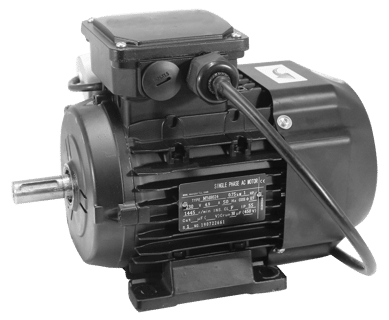

Betts Single Phase PSC 2 POLE B3 Flange

Enquire about this product
Model No.kWFrame SizeSpeedFull Load Amps
181-BTA-0055-2B30.557127603.7
181-BTA-0075-2B30.758027805
181-BTA-0110-2B30.758027906.7
181-BTA-0150-2B31.590S28009
181-BTA-0037-2B30.377127502.6
181-BTA-0220-2B32.290L280013

Description

Betts Single Phase Induction Motors are a range of high-quality aluminium metric frame, Totally Enclosed Fan Cooled (TEFC), squirrel cage induction motors. The range includes PSC and CSCR type motors for a wide range of applications.

Aluminium motor frame, terminal box, end-shields and flanges

IP55

Standard Foot Mount (removable)

B3, B5 and B14 Flange Options

Power Supply, 230V Single phase 50Hz.

2 or 4 pole.

Continuous S1 duty rated.

-15 to +40 ambient conditions.

Maximum altitude 1000m.

Shaft seals both ends of rotor.

Sealed Ball Bearings each end.

Rating plate fitted to each motor.

Black Painted finish for corrosion protection.
